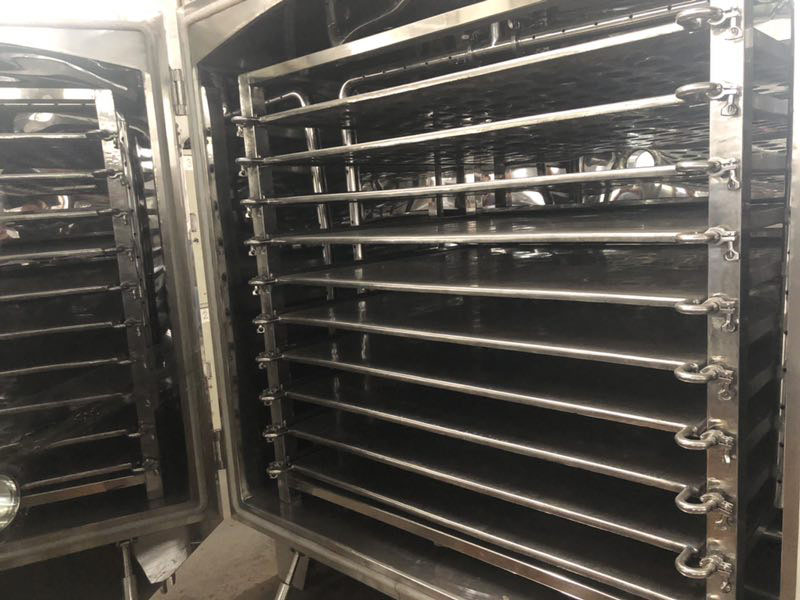

Industrial Cabinet Vacuum Tray Dryer

  • Industrial Cabinet Vacuum Tray Dryer
  • Industrial Cabinet Vacuum Tray Dryer
  • Industrial Cabinet Vacuum Tray Dryer
  • Industrial Cabinet Vacuum Tray Dryer

Industrial Cabinet Vacuum Tray Dryer

    Payment Type: T/T
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 60 Days
    Packaging: Wooden pallets/ Cartons/Plastic stretch-wrap
    Brand: Zhang
    Transportation: Ocean
    Place of Origin: Jiangsu Wuxi
    Supply Ability: 60/Year
    Certificate: CE
    Port: Shanghai

Basic Info

Model No.: ZDF-6--ZDF-30

Product Description

Vacuum Oven Features



1. Under the vacuum condition, the boiling point of raw material will decrease and could heated more uniform.

2. Hot water, steam and thermal oil are available heating resource.

3. The heat loss is less.

4. Operated in closed vacuum condition, there has no cross-contamination, which meet GMP standard.

5. Static drying, raw material could keep its integrity during drying.

6.Material:SS304, SS316L, Ti, Hastelloy, PTFE lined or other materials

7.Application:pharmaceutical, food, light, chemical and other industries.

Products Description

Vacuum Drying Oven
Tray Dryer Machine
Tray Dryer for Pharmaceutical Industry

Advantage
➤The advantages are fast drying speed, little pollution and good product quality. The oven keep the work space vacuum and dry by
vacuum pump, which helps reduce the boiling point and fasten drying speed.
➤It works under the negative pressure with less oxygen content, which can reduce or eliminate the oxidation reaction.
➤Under the negative pressure, boiling point is reduced, and it avoids the damage of material’s quality.
➤If solvent is toxic or valuable, the gas can be condensed and recycled.

Product Details
The parts touching with materials can be made from SS304, SS316L, Ti, Hastelloy, PTFE lined or other materials. Its inside wall is treated with electrolytic mirror polishing or mechanical polishing while its outside wall uses SS304 full-welding structure, and its outside surface is treated with mirror polishing or matte polishing.
Hot Air Tray Dryer
Drying Oven Machine
Tray Dryer
Electric Drying Oven
Drying Vacuum Tray Dryer
Customized Vacuum Oven
Technical Parameter
Table">
Model
BJYSL-DZF-6020
DZF-6050
DZF-6090
DZF-6210
D*W*H(internal)
300×300×275
415×370×345
450×450×450
560×600×640
D*W*H(mm)
605×490×450
730×560×550
610×680×1460
720×820×1750
Power(W)
450
1400
1450
2200
Plate
1
2
2
3
Temperature Range
RT+10℃~250℃
Temperature Resolution
±0.1℃
Upper/ lower temperature difference(℃)

±1℃
vacuum degree
133Pa
Working Temperature
+5℃~35℃
Model
D*W*H
(internal)
D*W*H (mm)
Plate
interlayer distance
(mm)
Drying tray
vacuum degree
(MPa)
ZDF-6
1000×1000×1200
1300×1350×1680
8
120
16
-0.096
ZDF-10
1000×1400×1200
1300×1680×1700
8
120
24
-0.096
ZDF-15
1160×1360×1200
1500×1700×1700
8
120
32
-0.096
ZDF-20
1160×2000×1200
1500×2300×1770
8
120
48
-0.096
ZDF-30
1160×2000×1600
1500×2300×2100
10
120
60
-0.096


Design / Calculation Software
Custom Service
Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)
2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer
5. Plate-fin Heat Exchanger
Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
Scope of business
1. On-site Inspection 2. Technical Innovation Plan for Equipment Technical Improvement Plan for Equipment’s Structure Optimization Fast and Effective Solution to Equipment Malfunctions Highly Efficient and Precise On-site Construction Service Commitment to a Deadline in Customization A Full Range of long-term on-site technical maintenance service 3. Maintenance 4. Technical Solutions 5. On-site Testing and Training 6. Spare Parts
